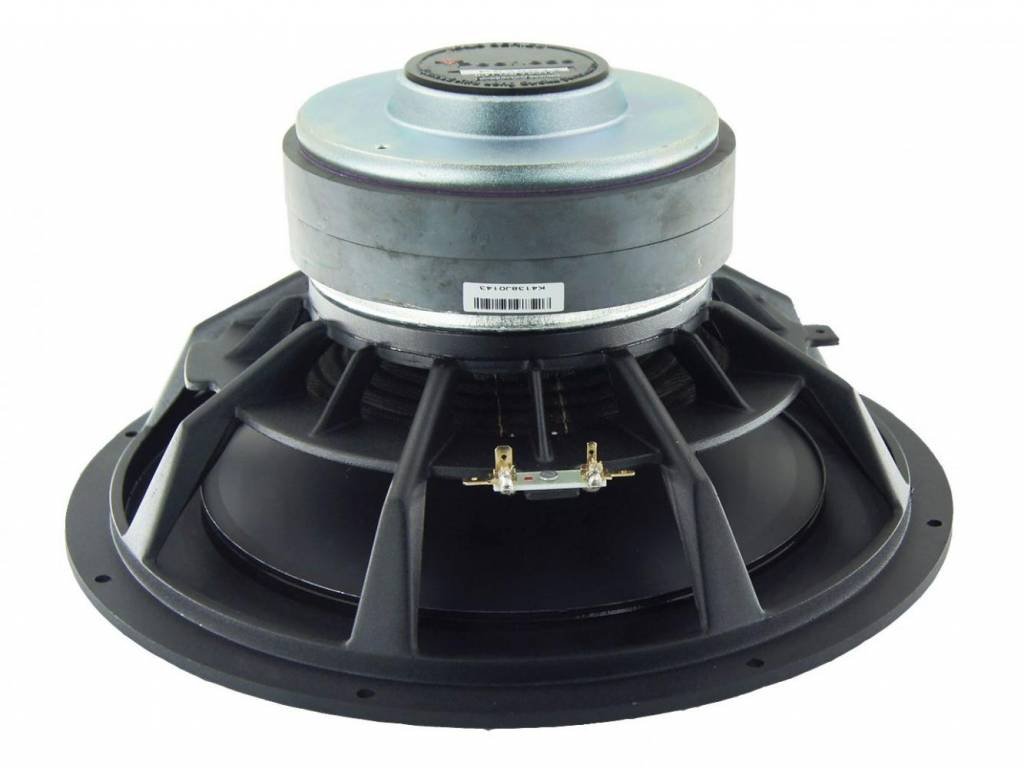

Peerless by Tymphany XXLS-P835017 12 Aluminum Cone Subwoofer

₹18,000.00

This series of state-of-the-art subwoofers continues to enhance Peerless’s reputation for delivering the highest quality components for bass.

Highlights
  • 12.5 mm of linear excursion
  • Extremely durable aluminum cone
  • Cast aluminum frame
  • Flat spider and HD rubber half roll surround
  • Massive stacked magnet
Download PDF File

Out of stock

Compare
Add to wishlist
Categories: Drivers, Subwoofer
Share:
  • Description
  • Shipping & Delivery
Description

Product Details

Peerless by Tymphany 835017 12″ Aluminum Cone XXLS Subwoofer

This series of state-of-the-art subwoofers continues to enhance Peerless’s reputation for delivering the highest quality components for bass. Called the XXLS—for “Xpanded Extra Long Stroke”—these audio transducers add even more excursion to the Peerless XLS line while completely eliminating distortion. The XXLS line features a strong yet attractive cast frame, reinforced aluminum cone, flat spider, and generous under-spider venting. The magnet system incorporates multiple distortion-canceling fixtures.

Product Specifications

  • Nominal Diameter – 12″
  • Power Handling (RMS) – 175 Watts
  • Power Handling (max) – 350 Watts
  • Impedance – 4 ohms
  • Frequency Response – 19 to 1,000 Hz
  • Sensitivity – 88.6 dB 2.83V/1m
  • Voice Coil Diameter –2″
Thiele-Small Parameters
  • Resonant Frequency (Fs) – 22 Hz
  • DC Resistance (Re) – 2.5 ohms
  • Voice Coil Inductance (Le) – 0.53 mH
  • Mechanical Q (Qms) – 10.83
  • Electromagnetic Q (Qes) – 0.4
  • Total Q (Qts) – 0.39
  • Compliance Equivalent Volume (Vas) – 4.8 ft.³
  • Mechanical Compliance of Suspension (Cms) – 0.42 mm/N
  • BL Product (BL) – 10.58 Tm
  • Diaphragm Mass Inc. Airload (Mms) – 131.4g
  • Maximum Linear Excursion (Xmax) – 12.5 mm
  • Surface Area of Cone (Sd) – 483.1 cm²
Materials of Construction
  • Cone Material – Aluminum
  • Surround Material – Rubber
  • Basket / Frame Material – Cast Aluminum
  • Magnet Material – Ferrite
Mounting Information
  • Overall Outside Diameter – 12.12″
  • Baffle Cutout Diameter – 10.91″
  • Depth – 6.38″
  • # Mounting Holes – 6
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume – 1.04 ft.³
  • Sealed F3 – 49 Hz
  • Vented Volume – 2.64 ft.³
  • Vented F3 – 29 Hz
Peerless by Tymphany 835017 12″ Aluminum Cone XXLS Subwoofer
  • Brand – Peerless by Tymphany
  • Model – XXLS-P835017
  • Part Number – 264-1114
  • UPC – 844632084188
  • Unit of Measure – EA
  • Weight – 15.4 lbs.
