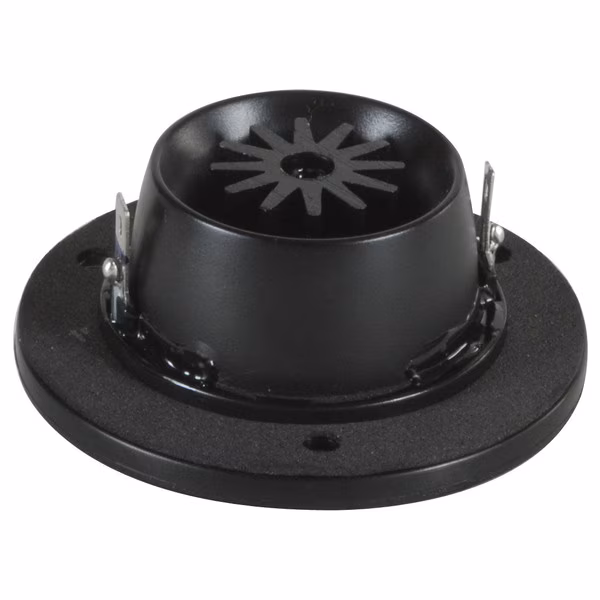

Peerless by Tymphany XT25SC90-04 1″ Dual Ring Radiator Tweeter

Tymphany

PRODUCT INFO

This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25 mm voice coil, mounted in a neodymium magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

Download PDF File

1,830.00

Compare

TECHNICAL SPECIFICATIONS

Driver Size 25 mm
DC Resistance 3.13 Ω ±5.0%
Resonant Frequency 824.75 Hz 15%
Half Space Sensitivity @ 2.83V 90.14 dB ±1.01
Sensitivity @ 1W/1m 86.8 dB ±1.01
Rated Noise Power (IEC 268-5 18.1) 100 W
Test Spectrum Bandwidth 800Hz – 20kHz 12 dB/Oct
Effective Piston Area 8.6 cm2
Moving Mass 0.3 g
Motor Force Factor 2.18 T•m
Voice Coil Inner Diameter 25.76 mm
Gap Height 2 mm
Maximum Linear Excursion 0.1 mm
Ferrofluid Type
Minimum Impedance 3.72 Ω ±7.5%
Voice Coil Inductance 0.01 mH
Mechanical Q Factor 7.17
Electrical Q Factor 1.07
Total Q Factor 0.93
Ratio 887.78 fs/Qts
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance 118.5 μm/N
Effective Cone Diameter 3.3 cm
Motor Efficiency Factor 1.5 (T•m2)/Ω
Voice Coil Former Material ASV
Driver Mass 0.07 Kg
Equivalent Volume 0.01 L
Categories: ,
brands

Tymphany

XT25SC90-04

Platform: Tymphany
Driver Type: Tweeter
Size: 25 mm
Motor: Neodymium
Frame: Plastic Faceplate
Impedance: 4 Ω
Diaphragm: Fabric
