Peerless by Tymphany STW-350F-188PR01-04 15 High Power Subwoofer

₹50,000.00 ₹45,000.00

  • Product description

    The Peerless STW-350F-188PR01-04 15″ subwoofer produces deep and clean low-frequency reproduction with minimal distortion at high output levels. Designed from the ground up for output, performance, and reliability from the smallest enclosures, this driver with its 7.4″ voice coil, internal magnet assembly, and outrageous excursion capability is a welcome departure from conventional subwoofer designs.



    Highlights

    • Massive 7.4″ voice coil produces extraordinary low power compression
    • 2 Large aluminum shorting rings for better control and minimal harmonic distortion
    • Dual 8 ohm voice coil allow multiple wiring configurations including dual amplifier designs
    • Internal magnet structure provides more force from a smaller magnet
    • Lower Vas and Fs with higher BL for unmatched low end capability from the smallest enclosures
    • Extensive voice coil venting for quiet operation and increased power handling
    • Over 90mm of mechanical excursion prevents failure under the most demanding conditions



    Product details

    Peerless by Tymphany STW-350F-188PR01-04 15″ High Power Subwoofer



    A New Generation of High Output, High Power Subwoofers

    The STW-350F-188PR01-04 subwoofer from Peerless was designed with performance and space in mind. This drivers offer deep and clean low-frequency reproduction with minimal distortion at high sound pressure levels. Unlike most subwoofers, the STW-350 can be mounted in a much smaller box than traditional subwoofers, which is enabled by the low Vas, high moving mass, and huge 7.4″ (188 mm) voice coil. This driver also features a unique FEA-optimized ferrite motor, extremely robust suspension, and an incredible amount of venting which provides extraordinarily low power compression even when driven with over 3,500 watts of power. This driver is built for high-quality performance and long term reliability.



    Massive 7.4″ Diameter x 2.25″ Long Voice Coil

    With small enclosure subwoofer design high-moving mass is necessary, but it is difficult to apply mass where it can be put to work. For the STW-350F, it was put into the voice coil – this improves the performance of the driver by raising the motor force. Unlike a conventional motor design, Bl changes very slowly as function of voice coil displacement. A voice coil with large surface area also offers another benefit – power compression is practically non-existent. Because of this, the voice coil takes longer to heat up, resulting in uncompressed dynamic musical peaks.



    Internal Motor Design

    To drive a high moving mass a subwoofer needs a powerful motor. In most cases a more powerful motor is achieved with a larger magnet (which increases a driver cost, size, and weight) or using a more efficient neodymium magnet (which is unstable and loses strength as the temperature increases). An additional benefit of the STW-350F’s giant coil is that Peerless was able to mount a ferrite motor inside of the voice coil. Conventional motor structures with the magnet outside of the motor lose 50% of their energy in stray fields, while a magnet on the inside of the voice coil will have 90% or better magnet utilization. The STW-350’s motor is the best of both worlds: reliable and efficient.



    Long Coil + Long Gap = High Excursion

    With an Xmax of 10.4 mm this driver might not seem all that impressive. However, Xmax is just a physical measurement and not actually the limit of linear excursion (Xmax = (Voice Coil Length – Magnetic Gap Height) / 2). The STW-350F has a remarkably long 36 mm magnetic gap with a 57 mm long voice coil. Thanks to such extreme dimensions and a well controlled magnetic field, this driver is capable of 45.5 mm of excursion before any major loss in motor strength (Bl). In other words, this driver is capable of 90 mm (3.5″) peak to peak excursion while still producing low distortion output.



    Front and Rear Mounting Points

    Due to the weight and extreme force that the STW-350F is capable of, Tymphany included rear mounting points on the back side of the frame. By attaching the rear of the frame to a brace in an enclosure, the baffle will be solidly tied to the sides walls increasing the rigidity of the enclosure while helping to support the overall weight of the STW-350F. These threaded holes accept M6 x 30 screws.





Download PDF File

Download PDF File

Compare
Add to wishlist
Categories: Drivers, Subwoofer
Share:
  • Description
  • Shipping & Delivery
Description

Product Details

Peerless by Tymphany STW-350F-188PR01-04 15″ High Power Subwoofer

A New Generation of High Output, High Power Subwoofers

The STW-350F-188PR01-04 subwoofer from Peerless was designed with performance and space in mind. This drivers offer deep and clean low-frequency reproduction with minimal distortion at high sound pressure levels. Unlike most subwoofers, the STW-350 can be mounted in a much smaller box than traditional subwoofers, which is enabled by the low Vas, high moving mass, and huge 7.4″ (188 mm) voice coil. This driver also features a unique FEA-optimized ferrite motor, extremely robust suspension, and an incredible amount of venting which provides extraordinarily low power compression even when driven with over 3,500 watts of power. This driver is built for high-quality performance and long term reliability.

Note: Due to the incredible amount of venting on this driver, when used outside of an enclosure, the air turbulance generated will create audible noise. Because of this, we recommend the use of a sealed enclosure.

Combining celebrated Danish transducer engineering with the manufacturing efficiencies enabled by Asian manufacturing, Tymphany propels Scandinavian speaker technology into the 21st Century. By paying tribute to iconic classic designs from Vifa and Peerless, and complementing them with bold new pro and consumer loudspeakers entries, Tymphany is positioned for further decades of audio excellence.

Massive 7.4″ Diameter x 2.25″ Long Voice Coil

With small enclosure subwoofer design high-moving mass is necessary, but it is difficult to apply mass where it can be put to work. For the STW-350F, it was put into the voice coil – this improves the performance of the driver by raising the motor force. Unlike a conventional motor design, Bl changes very slowly as function of voice coil displacement. A voice coil with large surface area also offers another benefit – power compression is practically non-existent. Because of this, the voice coil takes longer to heat up, resulting in uncompressed dynamic musical peaks.

Internal Motor Design

To drive a high moving mass a subwoofer needs a powerful motor. In most cases a more powerful motor is achieved with a larger magnet (which increases a driver cost, size, and weight) or using a more efficient neodymium magnet (which is unstable and loses strength as the temperature increases). An additional 8enefit of the STW-350F’s giant coil is that Peerless was able to mount a ferrite motor inside of the voice coil. Conventional motor structures with the magnet outside of the motor lose 50% of their energy in stray fields, while a magnet on the inside of the voice coil will have 90% or better magnet utilization. The STW-350’s motor is the best of both worlds: reliable and efficient.

Long Coil + Long Gap = High Excursion

With an Xmax of 10.4 mm this driver might not seem all that impressive. However, Xmax is just a physical measurement and not actually the limit of linear excursion (Xmax = (Voice Coil Length – Magnetic Gap Height) / 2). The STW-350F has a remarkably long 36 mm magnetic gap with a 57 mm long voice coil. Thanks to such extreme dimensions and a well controlled magnetic field, this driver is capable of 45.5 mm of excursion before any major loss in motor strength (Bl). In other words, this driver is capable of 90 mm (3.5″) peak to peak excursion while still producing low distortion output.

Front and Rear Mounting Points

Due to the weight and extreme force that the STW-350F is capable of, Tymphany included rear mounting points on the back side of the frame. By attaching the rear of the frame to a brace in an enclosure, the baffle will be solidly tied to the sides walls increasing the rigidity of the enclosure while helping to support the overall weight of the STW-350F. These threaded holes accept M6 x 30 screws.

Note: Specifications below are measured with voice coils wired in parallel

Product Specifications

  • Nominal Diameter – 15″
  • Power Handling (RMS) – 3,500 Watts
  • Power Handling (max) – 5,000 Watts
  • Impedance – 8+8 ohms
  • Frequency Response – 10 to 500 Hz
  • Sensitivity – 88.7 dB 2.83V/1m
  •   Voice Coil Diameter – 7.4″
Thiele-Small Parameters
  • Resonant Frequency (Fs) – 25.3 Hz
  • DC Resistance (Re) – 3.2 ohms
  • Voice Coil Inductance (Le) – 3.31 mH
  • Mechanical Q (Qms) – 11.39
  • Electromagnetic Q (Qes) – 0.5
  • Total Q (Qts) – 0.48
  • Compliance Equivalent Volume (Vas) – 2.05 ft.³
  • Mechanical Compliance of Suspension (Cms) – 0.068 mm/N
  • BL Product (BL) – 24.18 Tm
  • Diaphragm Mass Inc. Airload (Mms) – 576.8g
  • Maximum Linear Excursion (Xmax) – 10.4 mm
  • Surface Area of Cone (Sd) – 774.4 cm²
Materials of Construction
  • Cone Material – Paper / Carbon Fiber
  • Surround Material –Rubber
  • Voice Coil Wire Material – Copper
  • Voice Coil Former – Fiberglass
  • Basket / Frame Material – Cast Aluminum
Mounting Information
  • Overall Outside Diameter – 15″
  • Baffle Cutout Diameter – 13.7″
  • Depth – 9.17″
  • Bolt Circle Diameter – 14.25″
  • # Mounting Holes – 8
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume – 2 ft.³
  • Sealed F – 342 Hz
  • Vented Volume – 2.88 ft.³
  • Vented F – 324.2 Hz
Peerless by Tymphany STW-350F-188PR01-04 15″ High Power Subwoofer
  • Brand – Peerless by Tymphany
  • Model – STW-350F188PR01-04
  • Part Number – 264-1652
  • UPC – 848864049885
  • Unit of Measure – EA
  • Weight – 65 lbs.
Shipping & Delivery

Related products

-26%Sold out
Compare

Peerless by Tymphany FSL-1020R02-08 Professional 10″ Woofer Driver 8 Ohm

₹7,100.00 ₹5,250.00
This 10 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 2 inch high-temperature voice coil, a vented yoke for motor cooling, and a high strength stamped steel frame. It also features a Kevlar loaded non-pressed paper cone to help dampen and control cone resonance. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer.
A great driver for use as a midbass in a 3-way or a woofer in a compact 2-way system, Tymphany's FSL-1020R02-08 woofer combines high efficiency and smooth response past 2,500 Hz. High power for extended periods is possible thanks to the vented motor assembly keeping the voice coil cool.
Key Features
  • 2" high temperature voice coil and vented pole piece improve cooling for higher power handling
  • Multi-roll surround and spider have been optimized for reduced distortion
  • Excellent on and off axis response to 3,000 Hz for natural, space filling sound
  • Bumped back plate for increased excursion capabilities

Download PDF File
Add to wishlist
Read more
Quick view
-1%Sold out
Compare

Peerless by Tymphany FSL-0818R01-08 Professional 8″ Woofer Driver 8 Ohm

₹4,150.00 ₹4,100.00
This 8 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 1.8 inch high-temperature voice coil, vented yoke for motor colling, and a high strength stamped steel frame. Kevlar loaded non-pressed paper cone to help dampen and control cone resonance. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer
Tymphany's FSL-0818R01 8 ohm woofer combines high efficiency and smooth response, making this driver an ideal midbass for use in a 3-way or even a compact 2-way system. Thanks to the vented motor assembly keeping the voice coil cool, high power for extended periods is possible.
Key Features
  • Low Vas and Qts allow this driver to perform well in a small vented enclosure
  • Multi-roll surround and spider have been optimized for reduced distortion
  • Excellent on and off axis response to 3,000 Hz for natural, space filling sound
  • Bumped back plate for increased excursion capabilities
Download PDF File
Add to wishlist
Read more
Quick view
Compare

Peerless by Tymphany OX20SC00-04 34 Fabric Dome Tweeter

₹1,250.00
Tymphany's OX20SC00-04 tweeter features a coated textile diaphragm, high-energy neodymium magnet, and does not include a faceplate.
Highlights
  • Faceplate-less design for custom mounting
  • Smooth, extended response and high efficiency
  • 3/4" textile dome
  • Self-shielding neodymium motor
  • Low Fs, low distortion
  • High efficiency
Download PDF File
Add to wishlist
Add to cart
Quick view
-55%Sold out
Compare

Peerless by Tymphany NE123W-08 4 Full Range Woofer Speaker

₹11,000.00 ₹5,000.00
The high fidelity/low distortion Tymphany NE123W-08 4" Neodymium Woofer utilizes advanced design and measurement technologies in combination with carefully selected construction materials.
Highlights
  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 1-1/4" voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 8 ohm nominal impedance
Download PDF File
Add to wishlist
Read more
Quick view
-19%
Compare

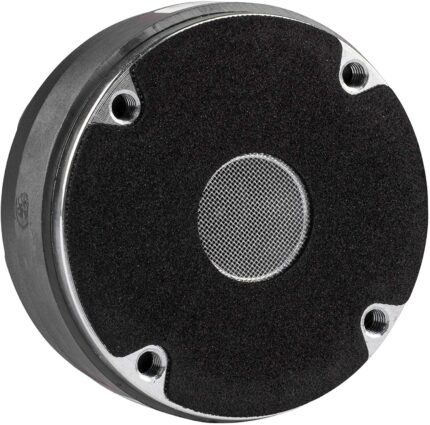

Peerless by Tymphany DFM-2535R00-08 1 Compression Horn Driver 24-Bolt 8 Ohm
