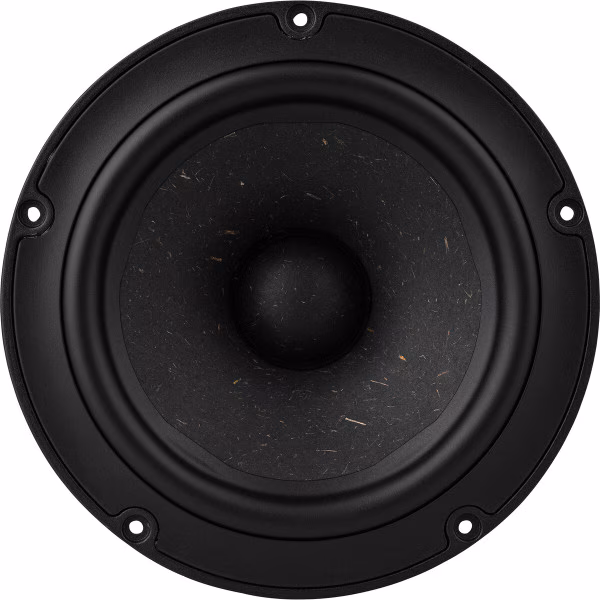

Peerless by Tymphany NE180W-08 6-1/2″ Fiber Cone Woofer Speaker

Tymphany’s NE180W-08 6-1/2″ speaker is an advanced, well-engineered woofer and midbass driver designed for accurate audio reproduction.

Highlights
  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 1-1/2″ voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 8 ohm nominal impedance

Download PDF File

8,000.00 12,000.00

Compare

Product Details

Peerless by Tymphany NE180W-08 6-1/2″ Fiber Cone Woofer Speaker

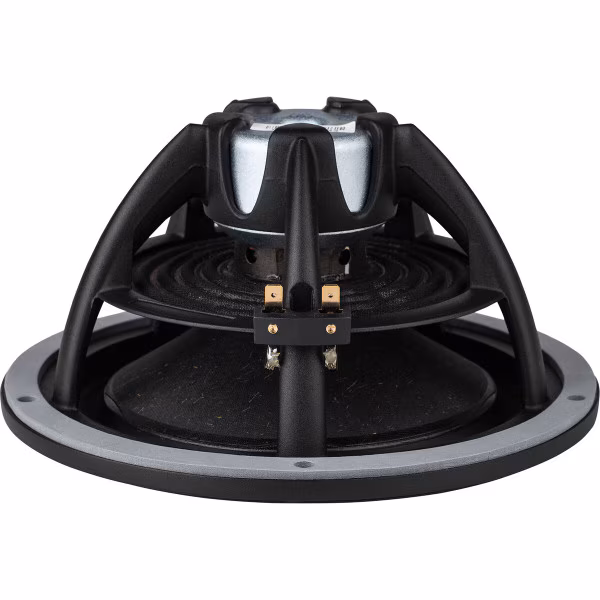

The Tymphany NE180W-08 6-1/2″ Neodymium Woofer is characterized by the NE Series’ cast aluminum basket; an innovative sculpted, open design that minimizes internal acoustic reflections and assists the neodymium motor’s thermal management.

A coated natural wood fiber cone with a butyl rubber surround is FEA optimized for linearity of performance. Finite element analysis techniques also contribute to inclusion of the motor’s copper cap, which reduces inductance and extends the speaker’s upper frequency performance.

Product Specifications

  • Nominal Diameter – 6-1/2″
  • Power Handling (RMS) – 80 Watts
  • Power Handling (max) – 160 Watts
  • Impedance – 8 ohms
  • Frequency Response – 40 to 4,000 Hz
  • Sensitivity – 87.4 dB 2.83V/1m
  • Voice Coil Diameter – 1.5″
Thiele-Small Parameters
  • Resonant Frequency (Fs) – 42 Hz
  • DC Resistance (Re) – 6.2 ohms
  • Voice Coil Inductance (Le) – 0.12 mH
  • Mechanical Q (Qms) – 7.4
  • Electromagnetic Q (Qes) – 0.41
  • Total Q (Qts) – 0.39
  • Compliance Equivalent Volume (Vas) – 0.8 ft.³
  • Mechanical Compliance of Suspension (Cms) – 0.86 mm/N
  • BL Product (BL) – 8.17 Tm
  • Diaphragm Mass Inc. Airload (Mms) – 16.39g
  • Maximum Linear Excursion (Xmax) – 5 mm
  • Surface Area of Cone (Sd) – 136.9 cm²
Materials of Construction
  • Cone Material – Wood Fiber
  • Voice Coil Former – Titanium
  • Basket / Frame Material – Cast Aluminum
  • Magnet Material – Neodymium
Mounting Information
  • Overall Outside Diameter – 7.09″
  • Baffle Cutout Diameter – 6.18″
  • Depth – 3.65″
  • # Mounting Holes – 5
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume – 0.24 ft.³
  • Sealed F3 – 86 Hz
  • Vented Volume – 0.58 ft.³
  • Vented F3 – 47 Hz
Peerless by Tymphany NE180W-08 6-1/2″ Fiber Cone Woofer Speaker
  • Brand – Peerless by Tymphany
  • Model – NE180W-08
  • Part Number – 264-1134
  • UPC – 844632092619
  • Unit of Measure – EA
  • Weight – 1.95 lbs.
