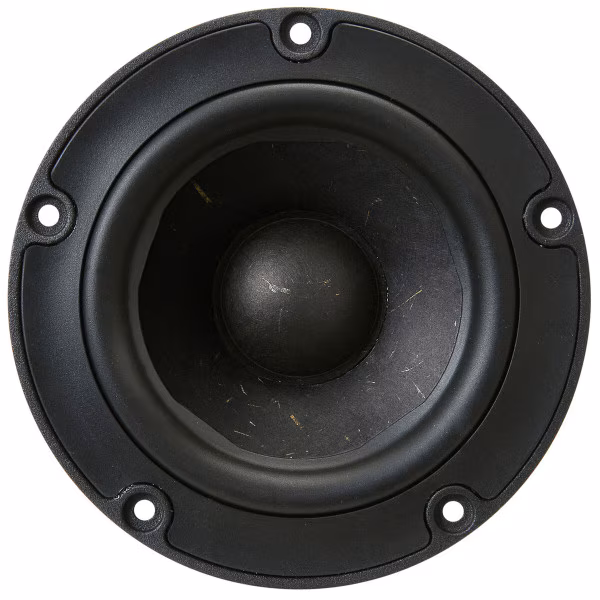

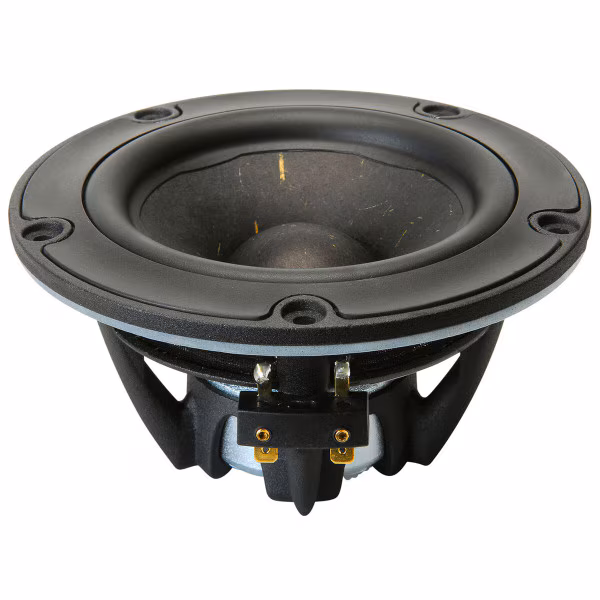

Peerless by Tymphany NE123W-08 4 Full Range Woofer Speaker
The high fidelity/low distortion Tymphany NE123W-08 4″ Neodymium Woofer utilizes advanced design and measurement technologies in combination with carefully selected construction materials.
- Cast aluminum frame promotes motor cooling
- Sculpted design improves airflow and reduces reflections
- High-strength compact neodymium magnet system
- Proprietary coated natural wood fiber cone with half-roll rubber surround
- Long-throw 1-1/4″ voice coil on titanium former
- Copper pole piece cap for extended HF response
- 8 ohm nominal impedance
₹6,000.00 ₹11,000.00
Product Details
The Tymphany NE123W-08 4″ Neodymium Woofer features an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and supplements the neodymium motor’s dedicated heat sink. The cone is constructed of a coated natural wood fiber, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to inclusion of the motor’s copper cap, which reduces inductance and extends high frequency performance.
Product Specifications
- Nominal Diameter – 4″
- Power Handling (RMS) – 45 Watts
- Power Handling (max) – 90 Watts
- Impedance – 8 ohms
- Frequency Response – 60 to 8,000 Hz
- Sensitivity – 86.2 dB 1W/1m
- Voice Coil Diameter – 1.28″
- Resonant Frequency (Fs) – 61 Hz
- DC Resistance (Re) – 6.3 ohms
- Voice Coil Inductance (Le) – 0.06 mH
- Mechanical Q (Qms) – 4.98
- Electromagnetic Q (Qes) – 0.37
- Total Q (Qts) – 0.35
- Compliance Equivalent Volume (Vas) – 0.21 ft.³
- Mechanical Compliance of Suspension (Cms) – 1.43 mm/N
- BL Product (BL) – 5.53 Tm
- Diaphragm Mass Inc. Airload (Mms) – 4.7g
- Maximum Linear Excursion (Xmax) – 3.1 mm
- Surface Area of Cone (Sd) – 54.1 cm²
- Cone Material – Wood Fiber
- Surround Material – Rubber
- Voice Coil Former – Titanium
- Basket / Frame Material – Cast Aluminum
- Magnet Materia – Neodymium
- Overall Outside Diameter – 4.84″
- Baffle Cutout Diameter – 3.86″
- Depth – 2.58″
- # Mounting Holes – 5
- Sealed Volume – 0.05 ft.³
- Sealed F3 – 141 Hz
- Vented Volume – 0.1 ft.³
- Vented F3 – 84 Hz
- Brand – Peerless by Tymphany
- Model – NE123W-08
- Part Number – 264-1128
- UPC – 844632092596
- Unit of Measure – EA
- Weight – 1 lbs.
