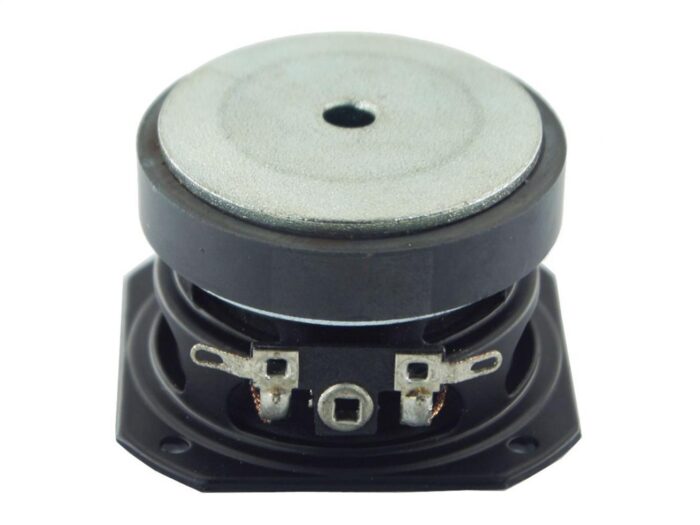

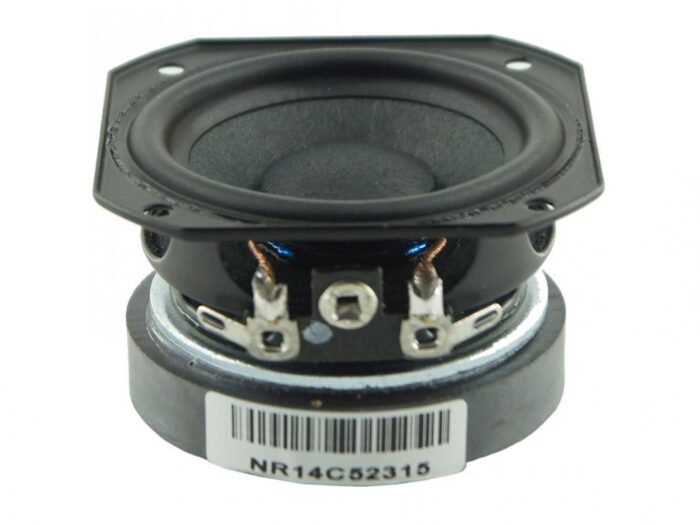

Peerless by Tymphany TC6FD00-04 2″ Full Range Paper Cone Woofer 4 Ohm
PRODUCT INFO
This TC family 2 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with television and other compact applications in mind.
Download PDF File
₹900.00 ₹1,035.00
TECHNICAL SPECIFICATIONS
| Driver Size | 2 in | – | ||
| DC Resistance | 3.54 Ω | ±5.0% | ||
| Resonant Frequency | 175.19 Hz | 15% | ||
| Half Space Sensitivity @ 2.83V | 84.5 dB | ±1.01 | ||
| Sensitivity @ 1W/1m | 81.6 dB | ±1.01 | ||
| Rated Noise Power (IEC 268-5 18.1) | 15 W | – | ||
| Test Spectrum Bandwidth | 150Hz – 20kHz 12 dB/Oct | – | ||
| Effective Piston Area | 15.2 cm2 | – | ||
| Moving Mass | 1.2 g | – | ||
| Motor Force Factor | 1.92 T•m | – | ||
| Voice Coil Inner Diameter | 19.32 mm | – | ||
| Gap Height | 3 mm | – | ||
| Maximum Linear Excursion | 1 mm | – | ||
| Ferrofluid Type | – | |||
| Minimum Impedance | 4.09 Ω | ±7.5% | ||
| Voice Coil Inductance | 0.02 mH | – | ||
| Mechanical Q Factor | 4.09 | – | ||
| Electrical Q Factor | 1.29 | – | ||
| Total Q Factor | 0.98 | – | ||
| Ratio | 178.58 fs/Qts | – | ||
| Energy Bandwidth Product ((1/Qes)•fs) | – | |||
| Suspension Compliance | 677 μm/N | – | ||
| Effective Cone Diameter | 4.4 cm | – | ||
| Motor Efficiency Factor | 1 (T•m2)/Ω | – | ||
| Voice Coil Former Material | ASV | – | ||
| Driver Mass | 0.17 Kg | – | ||
| Equivalent Volume | 0.22 L | – |
| brands | Tymphany |
|---|
TC6FD00-04
| Platform: | Tymphany |
| Driver Type: | Full Range |
| Size: | 2 in |
| Motor: | Ferrite |
| Frame: | Steel Basket |
| Impedance: | 4 Ω |
| Diaphragm: | Paper |
