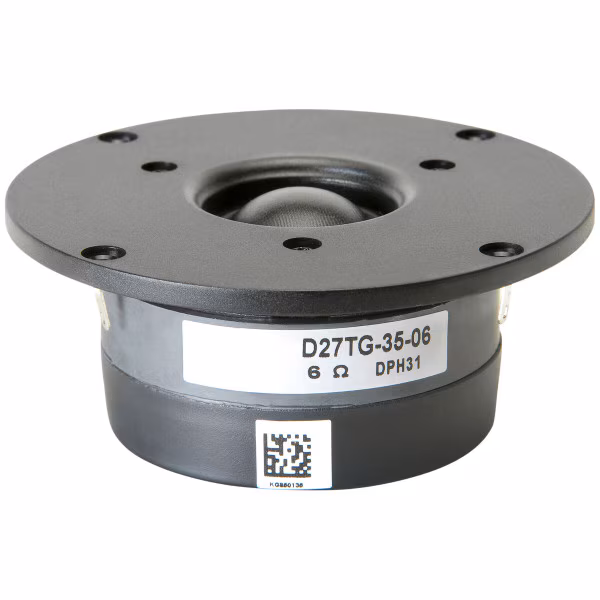

Peerless by Tymphany D27TG35-06 1″ Silk Dome Tweeter
This D family tweeter features an 6 ohm 25 mm voice coil, a treated silk dome, large rear chamber for low resonant frequency, and a ferrofluid-cooled ferrite magnet motor. The large motor and rear chamber allow for robust power handling capacity. The tweeter comes with a faceplate with recessed mounting holes, for easy installation into the desired application.
Download PDF File
₹3,400.00
TECHNICAL SPECIFICATIONS
| Driver Size | 25 mm | – | ||
| DC Resistance | 4.89 Ω | ±5.0% | ||
| Resonant Frequency | 911.7 Hz | 15% | ||
| Half Space Sensitivity @ 2.83V | 92.77 dB | ±1.01 | ||
| Sensitivity @ 1W/1m | 91.1 dB | ±1.01 | ||
| Rated Noise Power (IEC 268-5 18.1) | 100 W | – | ||
| Test Spectrum Bandwidth | 2.5KHz – 20kHz 12 dB/Oct | – | ||
| Effective Piston Area | 7.1 cm2 | – | ||
| Moving Mass | 0.2 g | – | ||
| Motor Force Factor | 2.48 T•m | – | ||
| Voice Coil Inner Diameter | 25.79 mm | – | ||
| Gap Height | 2.5 mm | – | ||
| Maximum Linear Excursion | 0.5 mm | – | ||
| Ferrofluid Type | APGL11 | – | ||
| Minimum Impedance | 5.49 Ω | ±7.5% | ||
| Voice Coil Inductance | 0.04 mH | – | ||
| Mechanical Q Factor | 1.21 | – | ||
| Electrical Q Factor | 1.01 | – | ||
| Total Q Factor | 0.55 | – | ||
| Ratio | 1657.64 fs/Qts | – | ||
| Energy Bandwidth Product ((1/Qes)•fs) | – | |||
| Suspension Compliance | 138 μm/N | – | ||
| Effective Cone Diameter | 3 cm | – | ||
| Motor Efficiency Factor | 1.3 (T•m2)/Ω | – | ||
| Voice Coil Former Material | ASV | – | ||
| Driver Mass | 0.52 Kg | – | ||
| Equivalent Volume | 0.01 L | – |
| brands | Tymphany |
|---|
D27TG35-06
| Platform: | Tymphany |
| Driver Type: | Tweeter |
| Size: | 25 mm |
| Motor: | Ferrite |
| Frame: | Plastic Faceplate |
| Impedance: | 6 Ω |
| Diaphragm: | Fabric |
