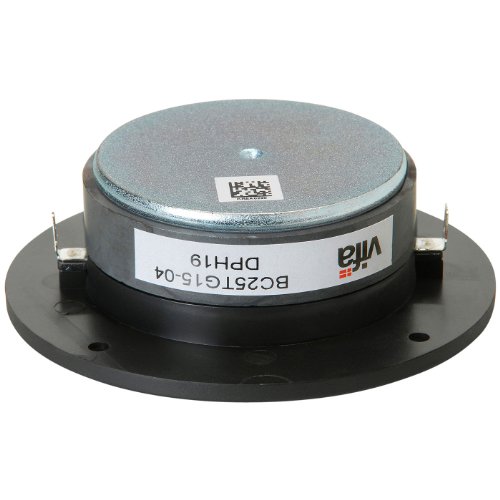

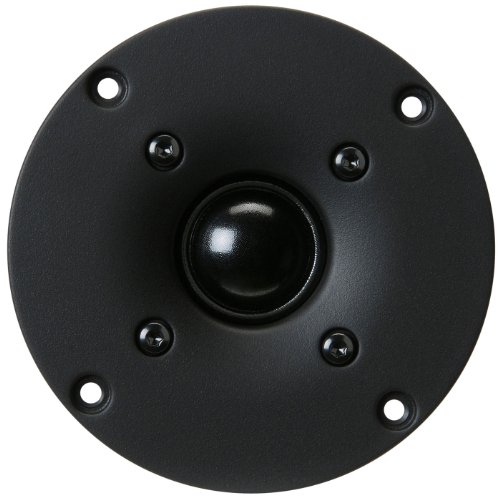

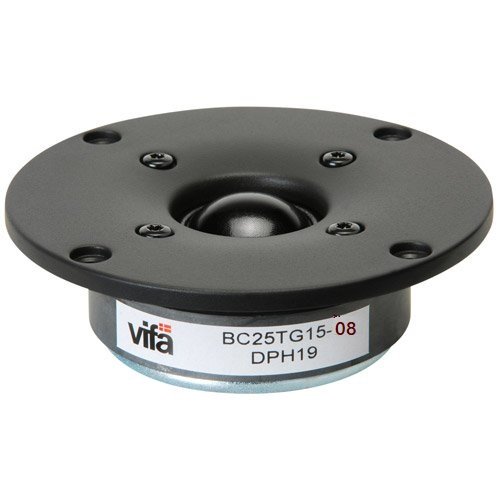

Peerless by Tymphany BC25TG15-08 Silk Dome Tweeter 8ohms
PRODUCT INFO
This BC family tweeter features a 8 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the ferrite motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes, complete with sealing gasket which helps in reducing vibration between baffle and driver.
Download PDF File
ECHNICAL SPECIFICATIONS
| Driver Size | 1 Inch | – | ||
| DC Resistance | 6.53 Ω | ±5.0% | ||
| Resonant Frequency | 1136.9 Hz | 15% | ||
| Half Space Sensitivity @ 2.83V | 91.71 dB | ±1.01 | ||
| Sensitivity @ 1W/1m | 91.3 dB | ±1.01 | ||
| Rated Noise Power (IEC 268-5 18.1) | 100 W | – | ||
| Test Spectrum Bandwidth | 1KHz-20KHz 12 dB/Oct | – | ||
| Effective Piston Area | 6.2 cm2 | – | ||
| Moving Mass | 0.4 g | – | ||
| Motor Force Factor | 3.24 T•m | – | ||
| Voice Coil Inner Diameter | 25.4 mm | – | ||
| Gap Height | 3 mm | – | ||
| Maximum Linear Excursion | 0.5 mm | – | ||
| Ferrofluid Type | APG027N | – | ||
| Minimum Impedance | 7.27 Ω | ±7.5% | ||
| Voice Coil Inductance | 0.04 mH | – | ||
| Mechanical Q Factor | 2.21 | – | ||
| Electrical Q Factor | 1.58 | – | ||
| Total Q Factor | 0.92 | – | ||
| Ratio | 1233.08 fs/Qts | – | ||
| Energy Bandwidth Product ((1/Qes)•fs) | 720.15 | – | ||
| Suspension Compliance | 55 μm/N | – | ||
| Effective Cone Diameter | 2.8 cm | – | ||
| Motor Efficiency Factor | 1.6 (T•m2)/Ω | – | ||
| Voice Coil Former Material | ASV | – | ||
| Driver Mass | 0.52 Kg | – | ||
| Equivalent Volume | 0 L | – |
| brands | Tymphany |
|---|
BC25TG15-08
| Platform: | Tymphany |
| Driver Type: | Tweeter |
| Size: | 1 Inch |
| Motor: | Ferrite |
| Frame: | plastic faceplate |
| Impedance: | 8 Ω |
| Diaphragm: | Fabric |
