| Transducer Size (Millimeters) | 152.4 |
|---|---|
| DC Resistance | 7.12 |
| Resonant Frequency | 41.76 |
| Half Space Sensitivity | 87.04 |
| Rated Noise Power | 60 |
| Test Spectrum Bandwidth | 35Hz - 20kHz |
Peerless by Tymphany FSL-1220R02-08 Professional 12″ Woofer Driver 8 Ohm
This 12 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 2 inch high-temperature voice coil, the yoke with vent can cool magnet system, and a high strength stamped steel frame. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer.
With a mix of high efficiency and smooth response, the FSL-1220R02-08 8 ohm woofer from Tymphany is an impressive for use as a midbass in a 3-way or a woofer in a compact 2-way system.
Key Features
- 2" high temperature voice coil and vented pole piece enhance cooling for higher power handling
- Multi-roll surround and spider have been optimized for reduced distortion
- Excellent on and off axis response to 3,000 Hz for natural, space filling sound
- Bumped back plate for increased excursion capabilities without bottoming out
Download PDF File
Peerless by Tymphany NE123W-08 4 Full Range Woofer Speaker
The high fidelity/low distortion Tymphany NE123W-08 4" Neodymium Woofer utilizes advanced design and measurement technologies in combination with carefully selected construction materials.
Highlights
- Cast aluminum frame promotes motor cooling
- Sculpted design improves airflow and reduces reflections
- High-strength compact neodymium magnet system
- Proprietary coated natural wood fiber cone with half-roll rubber surround
- Long-throw 1-1/4" voice coil on titanium former
- Copper pole piece cap for extended HF response
- 8 ohm nominal impedance
Peerless by Tymphany NE180W-08 6-1/2″ Fiber Cone Woofer Speaker
Tymphany's NE180W-08 6-1/2" speaker is an advanced, well-engineered woofer and midbass driver designed for accurate audio reproduction.
Highlights
- Cast aluminum frame promotes motor cooling
- Sculpted design improves airflow and reduces reflections
- High-strength compact neodymium magnet system
- Proprietary coated natural wood fiber cone with half-roll rubber surround
- Long-throw 1-1/2" voice coil on titanium former
- Copper pole piece cap for extended HF response
- 8 ohm nominal impedance

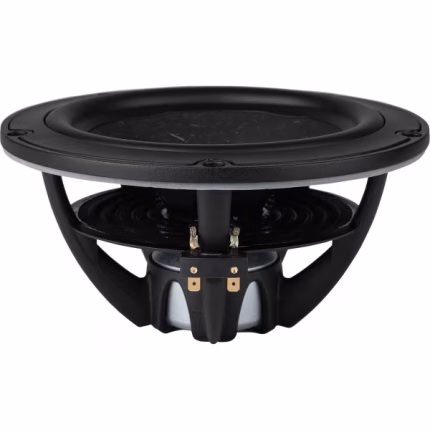

Peerless by Tymphany NE315W-04 12″ Subwoofer Speaker
This 12 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The subwoofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the NdFeB motor, so as to improve power handling capacity. An additional heat sink is available to provide extra thermal protection if needed. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas & processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.
Download PDF File
Peerless by Tymphany SDS Series 830855 4″ Woofer 8 Ohm
-
Product description
The 830855 SDS Series 4" woofer from Tymphany is perfect for use as a woofer in small format 2-way speakers, a mid in 3-way speakers, or as a compact subwoofer.Highlights
- Great all around woofer that works as a midrange or a compact subwoofer
- Maximum motor venting for quiet operation and good power handling
- Durable rubber surround and truncated cosmetic steel frame
Product details
Peerless by Tymphany SDS-P830855 4" Woofer Treated Paper SDS Woofer The SDS compact woofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 4 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket shaped to fit into narrow cabinets.
Download PDF File
Peerless by Tymphany SDS-160F25PR01-08 6-1/2″ Paper Cone Woofer Speaker
Peerless by Tymphany TC9FD18-08 3-1/2″ Full Range Paper Cone Woofer
PRODUCT INFO
This TC family 3.5 inch 8 ohm full-range driver,with ferrite magnet, paper cone, rubber surround, and plastic basket with front sealing gasket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and compact applications in mind.
Download PDF File
Peerless NE225W-04 8″ Paper Cone NE Woofer 4 Ohm
PRODUCT INFO
This 8 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The subwoofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. An additional heat sink is available to provide extra thermal protection if needed. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas & processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.
Download PDF File
Peerless SLS 830667, 8″ Paper Cone Woofer
PRODUCT INFO
The SLS line combines high quality performance with an affordable design. This 8 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance
The Peerless SLS Series combines high quality performance with an affordable design.
Key Features
- Premium sculpted stamped steel chassis
- Coated paper cone with rubber edge
- Shorting ring in magnet system
- Peerless SLS Series 8" Coated paper cone woofer
- Coated Paper cone
- Rubber surround
- Rigid stamped frame
- Ventilated raised spider
- Bumped back plate
- Shorting ring
- 213.5mm flange
- 178mm cut out hole size
- 100mm depth
- 4.8mm positive terminal and 2.8mm negative terminal
- Box suggestions:
- 1 to 1.5 cubic feet sealed for F3 of 47Hz
- 1.6 cubic feet with 3" vent by 6.75" long F3 of 33Hz, with +2dB bump
- Band Pass box (no crossover needed) F3 of 31Hz on the low end and F3 of 94Hz on the high end 0.9 cubic foot sealed chamber 0.6 cubic foot vented chamber with 3" diameter by 9" long vent People often pass the vent through the sealed chamber if it is too long The woofer fires into the vented chamber
Download PDF File
Peerless SLS 830668 10″ Woofer – Coated Paper Cone
The SLS line combines high quality performance with an affordable design. This 10 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.
Peerless 830668 10" Coated Paper Cone Woofer
The Peerless SLS Series combines high quality performance with an affordable design. The SLS drivers are ideal for use in systems with high power handling requirements, and are a logical choice for use with the SDS line of transducers.
- Coated Paper cone
- Rubber surround
- Rigid stamped frame
- Ventilated raised spider
- Bumped back plate
- Shorting ring
- 4.8mm positive terminal and 2.8mm negative terminal
- Foam gasket
- 263mm flange
- 226mm cut out hole size
- 123mm depth
- Suggested box alignment:
- 1.5 to 2.75 cubic feet sealed, with stuffing.F3 47Hz to 46Hz
- 3.0 cubic feet ported with 3"dia x 4.5" long or 4" dia x 9.25" long. F3 30Hz
Download PDF File

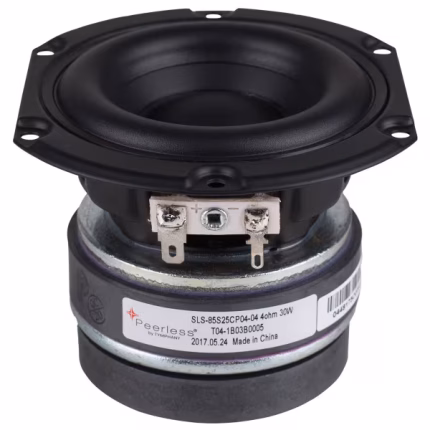

Peerless SLS-85S25CP04-04 3-1/2″ Paper Cone Woofer 4 Ohm
Product Info
The SLS line combines high-quality performance with an affordable design. This 3.5 inch 4 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance. With a low Fs and 4.5 mm of excursion, the 3-1/2" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 5,000 Hz ensures low distortion and accuracy throughout the midrange frequencies. Key Features- This small driver is capable of delivering a big sound
- Low Fs and high Xmax makes this small driver capable of big sound
- Damped paper cone with rubber surround provides natural response
- Dual magnet design concentrates the magnetic field on the voice coil gap
Download PDF
Peerless SLS-P830945 5-1/4″ Paper Cone Woofer 4 Ohm
PRODUCT INFO
The SLS line combines high quality performance with an affordable design. This 5.25 inch 4 ohm member of the SLS family features a rigid steel basket, a paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.
