Peerless by Tymphany 830656 5-1/4″ Paper Cone SDS Woofer
Peerless SDS Line 830656 5.25" Woofer
- Coated paper cone
- Rubber surround
- Aluminum voice coil
- Soft roll spider
- Sealed box of 0.2 cubic feet for an F3 of 90Hz
- Vented box of 0.25 cubic with 1.5" diameter vent by 4" long for an F3 of 68Hz
Download PDF File
Peerless by Tymphany 830657 6-1/2″ Paper Cone SDS Woofer
PRODUCT INFO
Peerless #830657 SDS Line 6.5" Woofer
The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 6.5 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow profile steel basket, shaped to fit into narrow cabinets.
Download PDF File
Peerless by Tymphany 830869 8″ Nomex Cone HDS Woofer
PRODUCT INFO
This 8 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is nomex based, offering a unique visual and acoustic experience.
Download PDF File
Peerless by Tymphany 830875 6-1/2″ Nomex Cone HDS Woofer
This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is nomex based, offering a unique visual and acoustic experience.
Download PDF File
Peerless by Tymphany 830946 6-1/2″ Paper Cone Woofer Speaker 4 Ohm
Product description
The Peerless SLS Series 830946 6-1/2" woofer is a versatile, solidly-performing choice for midbass, woofer, or subwoofer applications.
Highlights
- Works great as a subwoofer in compact systems
- Sculpted and vented stamped steel frame promotes motor cooling
- Powerful ceramic magnet system with bumped back plate for full excursion
- Coated paper cone with oversized half-roll rubber surround
- Long-throw 1-1/2" voice coil
- Aluminum shorting ring in magnetic gap reduces distortion
- 4 ohm nominal impedance
Product details
Peerless by Tymphany SLS-P830946 6-1/2" Paper Cone Woofer The SLS line combines high quality performance with an affordable design. This 6.5 inch 4 ohm member of the SLS family features a rigid steel basket, a paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.Specifications
Article number SLS-P830946
Woofer Type Woofer
Nominal Diameter 6-1/2"
Power Handling (RMS) 75 Watts
Power Handling (max) 150 Watts
Impedance (Z) 4 ohms
Sensitivity 82 dB 2.83V/1m
Frequency Response 20 to 1,000Hz
Voice Coil Diameter 1.5"
DC Resistance (Re) 2.71 ohms
Voice Coil Inductance (Le) 0.65 mH
Resonant Frequency (Fs) 42 Hz
Mechanical Q (Qms) 4.92
Electromagnetic Q (Qes) 0.38
Total Q (Qts) 0.35
Diaphragm Mass Inc. Airload (Mms) 30.5g
Mechanical Compliance of Suspension (Cms) 0.47 mm/N
Surface Area of Cone (Sd) 123.5 cm²
BL Product (BL) 7.6 Tm
Compliance Equivalent Volume (Vas) 0.4 ft.³
Maximum Linear Excursion (Xmax) 8.2 mm
Cone / Diaphragm Material Paper
Surround Material Rubber
Basket / Frame Material Steel
Magnet Material Ferrite
Overall Outside Diameter 7.165"
Overall Depth 3.28"
Baffle Cutout Diameter 5.79"
# Mounting Holes 6
Sealed Volume 0.09 ft.³
Sealed F395 Hz
Vented Volume 0.21 ft.³
Vented F355 Hz
Download PDF File
Peerless by Tymphany 830990 6-1/2″ GFC Cone HDS Woofer
PRODUCT INFO
This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is a glass fibre composite, offering a unique visual and acoustic experience.
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.
Key Features
- Truncated cast aluminum frame
- Glass-Fibre Composite (GFC) cone with half-roll rubber surround
- Long-throw voice coil
- Shorting rings for reduced distortion
- Under-spider and voice coil ventilation
Download PDF File
Peerless by Tymphany 830991 5-1/4″ GFC Cone HDS Woofer
PRODUCT INFO
This 5.25 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is a glass fibre composite, offering a unique visual and acoustic experience.
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.
Key Features
- Truncated cast aluminum frame
- Glass-Fibre Composite (GFC) cone with half-roll rubber surround
- Long-throw voice coil
- Shorting rings for reduced distortion
- Under-spider and voice coil ventilation
Download PDF File
Peerless by Tymphany FSL-0512R01-08 Professional 5-1/4″ Midrange Woofer Driver 8 Ohm
This 5.25 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 1.2 inch high-temperature voice coil, and a high strength stamped steel frame. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer.
Download PDF File

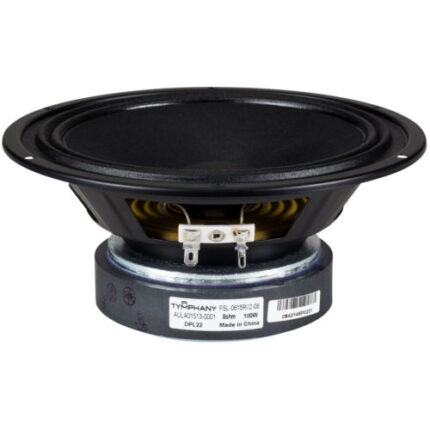

Peerless by Tymphany FSL-0615R02-08 Professional 6-1/2″ Woofer Driver 8 Ohm
This 6.5 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 1.5 inch high-temperature voice coil, and a high strength stamped steel frame. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer.
Download PDF File
Peerless by Tymphany FSL-0615R02-08 Professional 6-1/2″ Midrange Woofer Driver 8 Ohm
The FSL-0615R02 8 ohm mid-woofer from Tymphany has smooth on and off axis response to over 3,000 Hz, making it an excellent driver for a wide dispersion speaker system such as stage monitors or compact PA systems.
Download PDF File
Highlights
- Optimized multi-roll surround and spider for reduced distortion
- Extremely flat off axis response mates easily with wide dispersion tweeters
- High efficiency and excursion allow for high output without much effort
- Durable construction with a reinforced stamped steel frame ensures a long life
Peerless by Tymphany FSL-0818R01-08 Professional 8″ Woofer Driver 8 Ohm
This 8 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 1.8 inch high-temperature voice coil, vented yoke for motor colling, and a high strength stamped steel frame. Kevlar loaded non-pressed paper cone to help dampen and control cone resonance. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer
Tymphany's FSL-0818R01 8 ohm woofer combines high efficiency and smooth response, making this driver an ideal midbass for use in a 3-way or even a compact 2-way system. Thanks to the vented motor assembly keeping the voice coil cool, high power for extended periods is possible.
Key Features
- Low Vas and Qts allow this driver to perform well in a small vented enclosure
- Multi-roll surround and spider have been optimized for reduced distortion
- Excellent on and off axis response to 3,000 Hz for natural, space filling sound
- Bumped back plate for increased excursion capabilities
Download PDF File
Peerless by Tymphany FSL-1020R02-08 Professional 10″ Woofer Driver 8 Ohm
This 10 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, a 2 inch high-temperature voice coil, a vented yoke for motor cooling, and a high strength stamped steel frame. It also features a Kevlar loaded non-pressed paper cone to help dampen and control cone resonance. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer.
A great driver for use as a midbass in a 3-way or a woofer in a compact 2-way system, Tymphany's FSL-1020R02-08 woofer combines high efficiency and smooth response past 2,500 Hz. High power for extended periods is possible thanks to the vented motor assembly keeping the voice coil cool.
Key Features
- 2" high temperature voice coil and vented pole piece improve cooling for higher power handling
- Multi-roll surround and spider have been optimized for reduced distortion
- Excellent on and off axis response to 3,000 Hz for natural, space filling sound
- Bumped back plate for increased excursion capabilities
